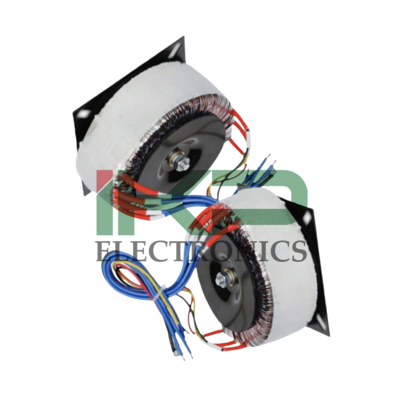

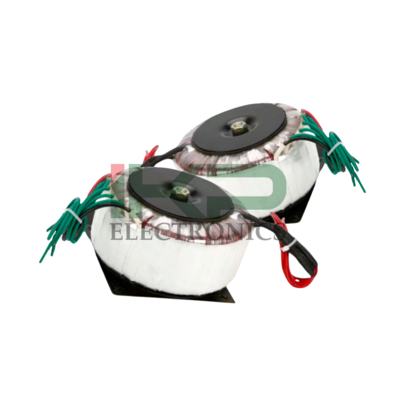

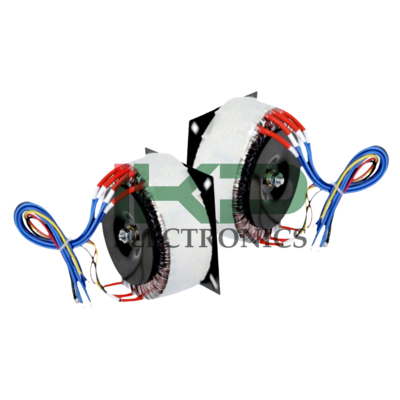

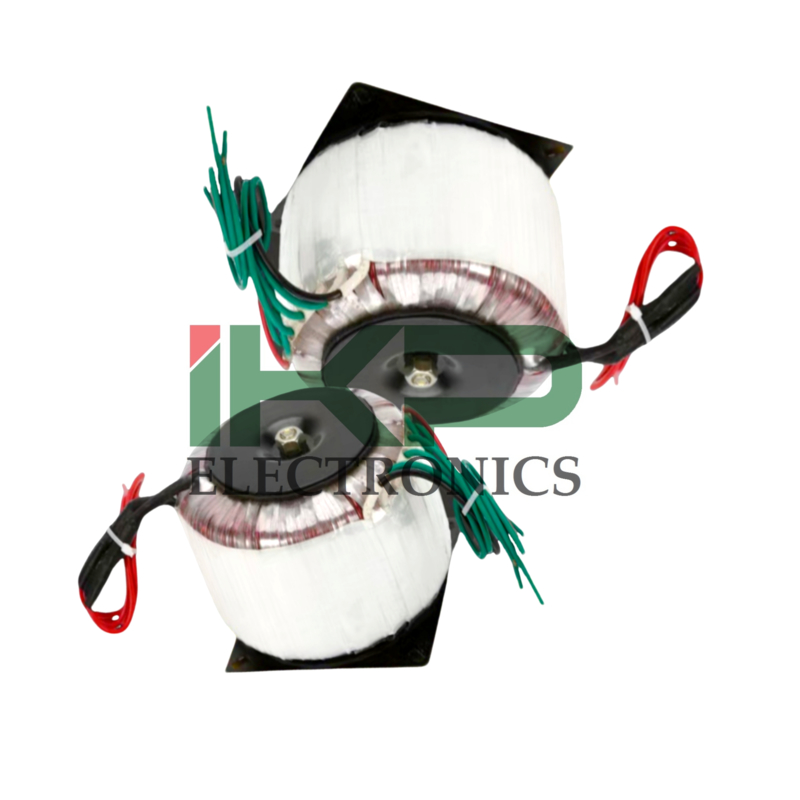

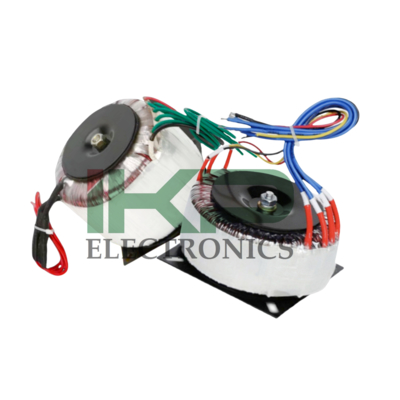

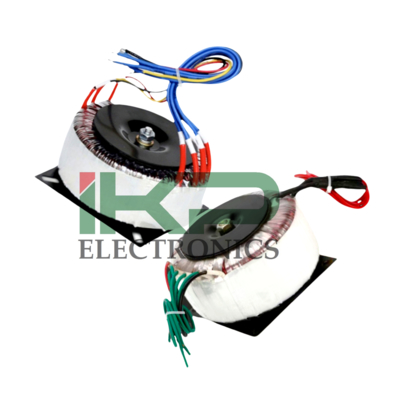

103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control

103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control

    • 103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control
    • 103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control
    • 103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control
    • 103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control
    • 103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control
    • 103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control
    • 103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control

    제품 상세 정보:

    Place of Origin: CHINA
    브랜드 이름: IKP
    인증: CE/UL/REACH/ROHS
    Model Number: Toroidal Transformer

    결제 및 배송 조건:

    Minimum Order Quantity: 1000
    가격: 3.00-20.00
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    지금 연락
    상세 제품 설명

    Specifications:

    • Power range:25VA to 2500VA

    • Phase: Single / Three phase

    • Input / Output: Customized

    • Insulation Class: UL class B, F, H, N (optional)

    • Isolation: 4KV (Hi-pot)

    • Easy to change diameter and height of the core

    • Customized specifications are welcome

    Rated Power

           (VA)

     Frequency

           (Hz)

     Outside Dimension

             D*H(mm)

       Weight

          (kg)

      Temp. Rise

             (℃)

    		             Approval
    25 50/60 80*32 0.54 30 UL/CE/RoHS/CQC
    50 50/60 80*37 0.71 45 UL/CE/RoHS/CQC
    100 50/60 95*45 1.24 51 UL/CE/RoHS/CQC
    160 50/60 103*47 1.75 53 UL/CE/RoHS/CQC
    250 50/60 118*53 2.36 53 UL/CE/RoHS/CQC
    500 50/60 140*65 4.2 55 UL/CE/RoHS/CQC
    1000 50/60 170*75 7.2 58 UL/CE/RoHS/CQC
    2500 50/60 190*115 14.5 63 UL/CE/RoHS/CQC

    ◆We can design and manufacture customized part with specific requirement

    103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control



    103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control103*47mm Outside Dimension D*H Toroidal Transformer for Industrial Control
